Discussion Starter · #13 ·
cobray said:
Looks great! I love the pics. Can we see more when it's done? That looks like some very complicated plumbing....:eek:

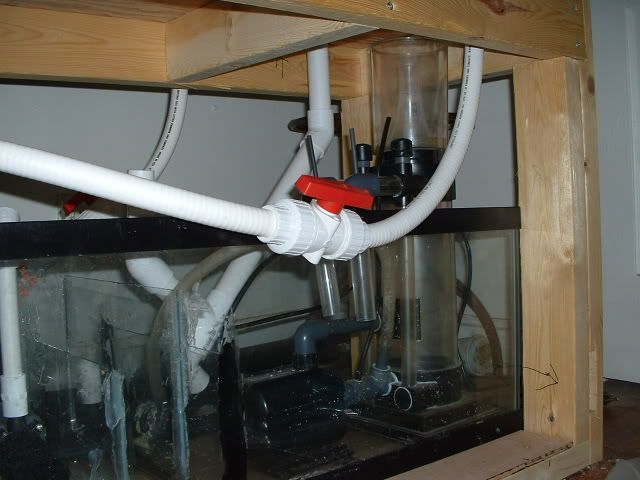

It didn't start out quite this complicated. After giving my initial plan some thought I decided that there was going to be too much flow through the sump. Since I already had the 2nd Genx pump it became a 2nd cls. By doing so I had to add a couple more bulkheads and run a new line for the sump return.

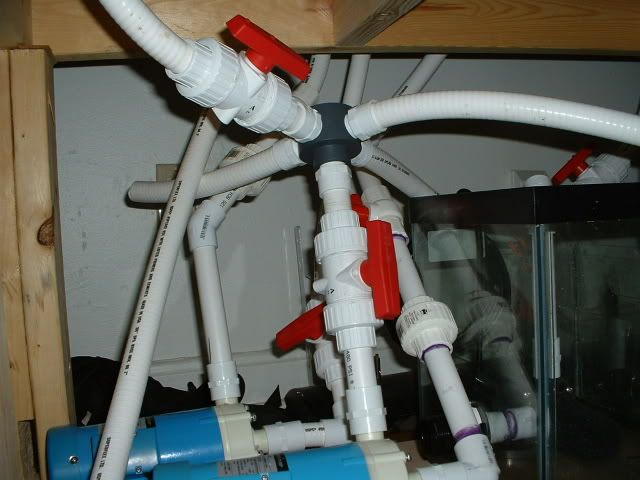

Basically here's the setup. One cls has an OceansMotions Squirt on it(Boris). There are 4 outlets on this one, 2 come up from the bottom in the front corners of the tank and 2 enter from the back of the tank. The 2 in the front direct water up and towards the center. The 2 in back blow across the bottom under the rock. The second cls has 2 outlets, each one coming in from the top and directing water towards the opposite corner.


·
Registered
Joined
·
5,232 Posts
Definitly some more pics!

Looks like one GREAT mess!:thumbup:


·
Tang Lover
Joined
·
7,326 Posts
I'm with 110. That's one beautiful mess!! very nice!

I know it's been a pain...but once it's all done, it'll be worth it.


·
The Bitter Mod
Joined
·
7,059 Posts
Discussion Starter · #17 ·
skeety said:
I'm with 110. That's one beautiful mess!! very nice!

I know it's been a pain...but once it's all done, it'll be worth it.

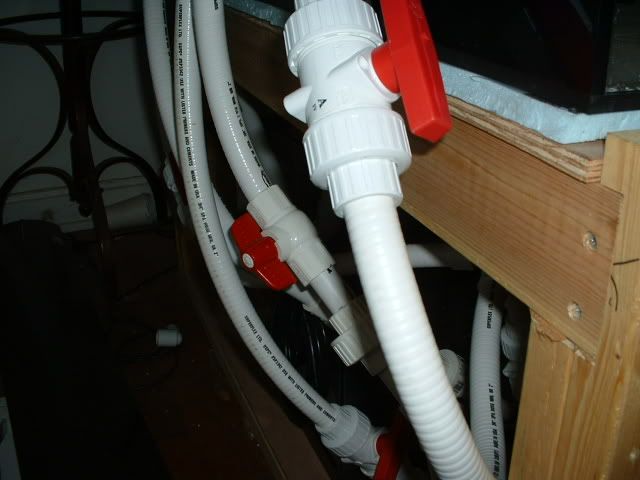

I can't begin to imagine how big a pia it would have been to use rigid pvc on this contraption.
