C.L. Diversion Help Needed

Kimpossible · 10-06-2006, 10:53 AM

I am currently plumbing my 120 and need help.

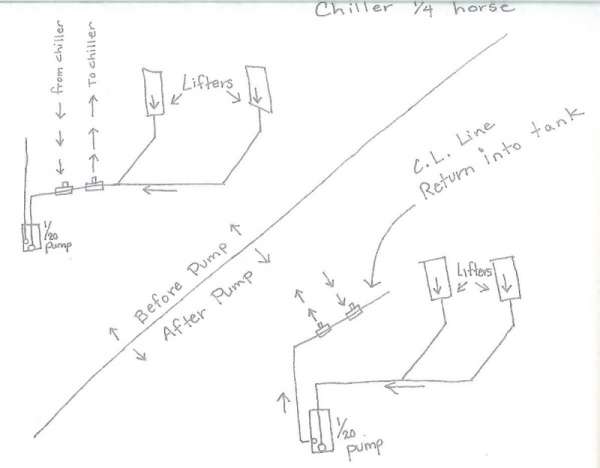

I have decided to run my Chiller off of my CL and have dry plumbed it as seen in the "Before Pump" sketch below. I am worried that I have created a vacuum and water is just going to sit in my chiller.... All C.L. lines are 1" pipe EXCEPT for the diversion T's which are reduced to 3/4" for my chiller lines.

I have also sketched up an alternative. Will you check them out and give me some opinions? I am plumbing by myself and am concerned that what I have done is feasable.

VWD · 10-06-2006, 11:05 AM

I don't think that is a good way to do it, You will be pushing water in the inlet and outlet of the chiller at the same pressure. Not going to work

Wiskey · 10-06-2006, 01:40 PM

Wiskey · 10-06-2006, 01:40 PM

Ya, unless you put a restriction between the input

Wiskey · 10-06-2006, 01:40 PM

Ya, unless you put a restriction between the input and output

Wiskey · 10-06-2006, 01:41 PM

WHAT THE HECK? I am having some serious trouble here.

Whiskey

Wiskey · 10-06-2006, 01:44 PM

Alright, trying again.

Ya, unless you put a restriction between the input and output of the chiller you will not get any flow through it. Anyway, chillers have a big restriction on them, and the point of a Closed loop is to get max flow, plus it will be really hard to maintain that way.

I would much rather run my chiller on my return, or if the return pump is too big for that run the chiller in the sump on it's own dedicated Mag 5 or something.

HTH,
Whiskey

Geoff · 10-06-2006, 01:44 PM

explain what your lifters are please?

Vince is right, the chiller will not work the way you have drawn. if you were to remove the length of pipe between the chiller inlet and outlet than it would work. there would be a significant amount of flow loss, but it would work.

the only way that it would work the way you have drawn is if there was a small pump on the chiller loop to push water through the chiller.

G~

Kimpossible · 10-06-2006, 01:46 PM

Ok, I'll take the chiller off the C.L.
I'll sketch something up and post this afternoon.
Thanks all!

Lifters... Just 10" cylinders 2" in diameter to disperse the force of the water being pulled from the tank and fed into the CL
