How to rebuild the forks on your Motorcycle! Lots of pics.


Now,.. I'm not saying you HAVE to do this on your Kitchen sink,.. but if your wife will let you it's probably the easiest spot,.. while your at it you can find a transmition to put in your bathtub

Thanks Tashier for the rundown on inverted forks,.. these were simpler,.. but your right,.. I still was "Supposed" to need a seal driver,.. since it's $100, I decided to do something else.

Jess,.. point your husband at this,.. I have a feeling he'll need it soon.

First,.. read your directions:


Here was why I had to do it,.. this fork was leaking like a siv:


Drain the oil from the forks.

Before you do anything break this nut loose (don't take it out though) and break the nut ontop of the fork loose: It may drip a little oil from the bottom when you break the bottom nut loose.


Next,.. take your bike apart,.. I opted to do one fork at a time:


Pop the dust seal off,.. then from in here:


Remove this Clip:


Using this Tool:

It's $11,.. You may use it twice in your life,.. but those 2 times you'll be so glad you have it.

More in a bit.
Whiskey
__________________
Vagabond
Computers are the worlds most plentiful source of unique, and unimaginable problems.
Wiskey is offline   Reply With Quote
Old 01-05-2008, 02:27 AM   #2
Wiskey
Just some guy, you know?

Wiskey's Avatar

Join Date: Sep 2005
Location: Vista, CA
Posts: 18,986
Images: 71
Now,.. remember this bolt? Remove it:



Grasp each end of the forks and pull apart hard,.. the fork should come apart into two peices,..

One: (the lower fork)


Two: The upper fork:


You can see the seal on that fork half,.. slide it off and replace it with the new one,.. I opted to grease up the fork really well to make sure it's well lubricated.

Put the 2 forks back together carefully,.. and snug this bolt back up:


Now take the top nut off and slide this spacer out so you don't loose it,.. but watch that you don't loose the washer on the spring:




More coming:
Whiskey
__________________
Vagabond
Computers are the worlds most plentiful source of unique, and unimaginable problems.
Wiskey is offline   Reply With Quote
Old 01-05-2008, 02:30 AM   #3
Wiskey
Just some guy, you know?

Wiskey's Avatar

Join Date: Sep 2005
Location: Vista, CA
Posts: 18,986
Images: 71

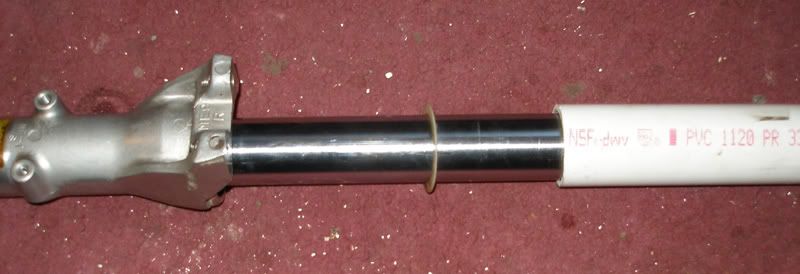

Now,.. the seal has to be driven home,.. normally you would use a seal driver,.. I opted to use this plastic washer,.. and a length of PVC pipe, because it costs $99 less A few good wacks and it was in.


Put this clip back in over the new seal:




Tighten the bottom bolt up:


Put your spacer back in,..


and fill with exactally the right amount of oil:


Put your top bolt back on.


Double check the directions so you make sure you did every step:


And you have a rebuilt fork!


Now you just have to do the other one, and put the bike back together
Whiskey
__________________
Vagabond
Computers are the worlds most plentiful source of unique, and unimaginable problems.
Wiskey is offline   Reply With Quote
Old 01-05-2008, 05:37 AM   #4
Rick O
Good boy

Rick O's Avatar

Join Date: Jan 2000
Location: Marietta, GA, USA
Posts: 7,889
Images: 54
There's no job you won't tackle. Good job.
__________________
Rick O is offline   Reply With Quote
Old 01-05-2008, 05:58 AM   #5
FishDaddy
Super Moderator

FishDaddy's Avatar

Join Date: Jan 2000
Location: Smoky Mountains, TN, USA
Posts: 14,503
Good job and excellent illustrations, Whiskey! Very creative saving the $100 with your pvc seal driver.

Dick
__________________
Every day is a good day but some are gooder than others!!
http://users.zoominternet.net/~kathywerner/gifs/jumping_fish.gif
FishDaddy is offline   Reply With Quote
Old 01-05-2008, 06:51 AM   #6
know-it-all
kid impersonator

know-it-all's Avatar

Join Date: Mar 2006
Location: in the cheap seats
Posts: 3,840
Images: 157
congrats

how were the wheelies?
__________________
the opinions expressed are completely my own
the chip in my head only makes suggestions
know-it-all is offline   Reply With Quote
Old 01-05-2008, 06:59 AM   #7
partobe
Shark

partobe's Avatar

Join Date: Jul 2006
Location: new york city
Posts: 7,425
Images: 4
Reviews: 43
is that some sort of alien space craft?
__________________
Lions, Triggers and blennies! Oh My!
partobe is offline   Reply With Quote
Old 01-05-2008, 08:39 AM   #8
YLChik
Mommy Mod

YLChik's Avatar

Join Date: Jul 2006
Location: down the street and around the corner from Dimples
Posts: 5,304
Images: 751
Reviews: 4
Quote:
Originally Posted by partobe View Post
is that some sort of alien space craft?
LOL

hehe what else can I say!

My goodness Whiskey you are the king of DIY!
YLChik is offline   Reply With Quote
Old 01-05-2008, 08:44 AM   #9
sasquatch
Brunt of all Jokes~

sasquatch's Avatar

Join Date: Oct 2006
Location: Canukistan
Posts: 251
Lol Wiskey! whats for dinner?
sasquatch is offline   Reply With Quote
Old 01-05-2008, 08:48 AM   #10
ScruffyRubicon
Clowns Galore!

ScruffyRubicon's Avatar

Join Date: Oct 2005
Location: 65301
Posts: 10,140
Images: 886
Quote:
Originally Posted by Wiskey View Post
Remove this Clip:


Using this Tool:

It's $11,.. You may use it twice in your life,.. but those 2 times you'll be so glad you have it.

More in a bit.
Whiskey
Isn't that the truth! I bought a set because I needed it in 1992. Been in the tool box ever since!
__________________
Fish Man Eric
Current tank - 40g Breeder - BeanAnimal C2C Overflow & DIY Stand, percula clownfishes; sps and lps, and soft corals; Evergrow IT2080 LED, 20 high sump w/ Reef Octopus SRO 1000 INT skimmer, 2 - Tunze Turbelle Stream 6105 w/ 7096 Multicontroller
Corynactis Anemone Tank - Tank is shutdown right now but a return is coming!
ScruffyRubicon is offline   Reply With Quote
Old 01-05-2008, 08:50 AM   #11
ScruffyRubicon
Clowns Galore!

ScruffyRubicon's Avatar

Join Date: Oct 2005
Location: 65301
Posts: 10,140
Images: 886
Quote:
Originally Posted by Wiskey View Post
Now,.. the seal has to be driven home,.. normally you would use a seal driver,.. I opted to use this plastic washer,.. and a length of PVC pipe, because it costs $99 less A few good wacks and it was in.
Great idea! I did the same thing when replacing the rear seal in my Jeeps transfer case. I keep that one piece of PVC around for future use.
__________________
Fish Man Eric
Current tank - 40g Breeder - BeanAnimal C2C Overflow & DIY Stand, percula clownfishes; sps and lps, and soft corals; Evergrow IT2080 LED, 20 high sump w/ Reef Octopus SRO 1000 INT skimmer, 2 - Tunze Turbelle Stream 6105 w/ 7096 Multicontroller
Corynactis Anemone Tank - Tank is shutdown right now but a return is coming!
ScruffyRubicon is offline   Reply With Quote
Old 01-05-2008, 08:58 AM   #12
Loverotties
I've got the REEF rash!

Loverotties's Avatar

Join Date: Nov 2004
Location: New Jersey
Posts: 55,516
I use mine at least twice a yr and some times more,but I got one that does both the internal and external snap rings.It really helps out on those internals the most! Congrads!You say alot of $ DYI!
__________________
George
Loverotties is offline   Reply With Quote
Old 01-05-2008, 09:06 AM   #13
Scruffys Catch
Shark

Scruffys Catch's Avatar

Join Date: Jun 2007
Posts: 1,061
Images: 242
Reviews: 2
Looks good.
__________________
Stacy
Scruffys Catch is offline   Reply With Quote
Old 01-05-2008, 09:13 AM   #14
cath
Birthday tracker

cath's Avatar

Join Date: Jan 2000
Location: Spartanburg, SC USA
Posts: 20,986
Images: 289
Quote:
Originally Posted by partobe View Post
is that some sort of alien space craft?
Yeh, anyway

Whiskey - Your instructions are so good, that I think I might be able to do it! Might I suggest this for further reading?

__________________
cath

-La Dolce Vita
Proud member of the BRW crowd
cath is offline   Reply With Quote
Old 01-05-2008, 09:40 AM   #15
Phishnoob
Oh no...not again!!!

Phishnoob's Avatar

Join Date: Feb 2004
Location: Colorado Springs
Posts: 11,166
Images: 740
Good job Wiskey!

When you need stuff like cheap seal drivers check out Harbor Freight Tools. I have stubby wrenches and things that you need once from there. They may not be up there with Channel Locks or other tools for life but work for me.

That is a great book Cath, although it is really not about Motorcycles.
